• Country
• United States of America (USA)

• Manufacturer / Brand
• Allen Organ Company; Macungie, Pennsylvania

• Year
• 1955 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 247869

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6AU6 6SN7 6SN7 6L6 6L6 6L6 6L6 5U4G 5U4G 0C3

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

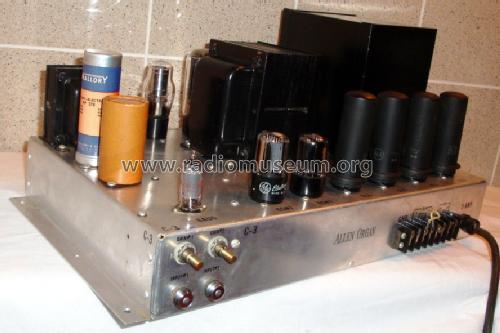

• Model: Organ Amplifier C-3 - Allen Organ Company; Macungie,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 18.75 x 9 x 11 inch / 476 x 229 x 279 mm

• Net weight (2.2 lb = 1 kg)
• 45 lb (45 lb 0 oz) / 20.430 kg

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
