• Country
• United States of America (USA)

• Manufacturer / Brand
• Ambassador (Allied Stores Purchasing); New York, NY

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 356303

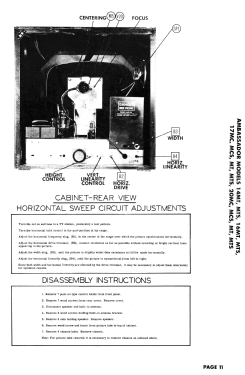

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• 6BC5 6J6 6AU6 6CB6 6CB6 6AC7 6AU6 6AL5 6AV6 or 6SQ7 6V6GT 12AU7 6SN7GT 6SN7GT 6AL5 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 17BP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ambassador 16MT [Late] - Ambassador Allied Stores

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Ambassador model 16MT is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with VHF tuner TTA-10007 and picture tube 17BP4A.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 173, folder 2, dated 7-52)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 77 models, 23 with images and 63 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Ambassador (Allied Stores Purchasing); New York, NY
