Knight 5 B 10501 Code: Image
Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 32154

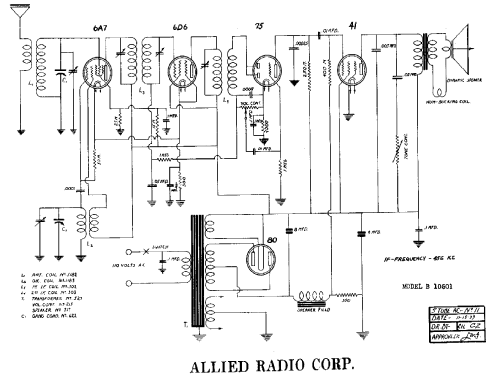

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Knight 5 B 10501 Code: Image - Allied Radio Corp. Knight,
- Dimensions (WHD)
- 14.5 x 8.25 x 7.25 inch / 368 x 210 x 184 mm
- Notes
-
The Knight 5 Tube A.C. Superhet tunes 175 to 555 Meters.
- Net weight (2.2 lb = 1 kg)
- 13 lb (13 lb 0 oz) / 5.902 kg
- Price in first year of sale
- 29.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Mentioned in
- Allied Radio Catalog (Knight) (Radios Leading Supply Guide 1938)
