Knight 5 tube AC/DC B 10509 code Verse wood
Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 32156
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF without regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Knight 5 tube AC/DC B 10509 code Verse [wood] - Allied Radio Corp. Knight,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 11 x 7.5 x 6 inch / 279 x 191 x 152 mm
- Notes
-
The Knight AC-DC TRF receiver B-10509 tunes from 75 to 180 and 180 to 550 Meters.
- Net weight (2.2 lb = 1 kg)
- 12 lb (12 lb 0 oz) / 5.448 kg
- Price in first year of sale
- 20.00 USD
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Mentioned in

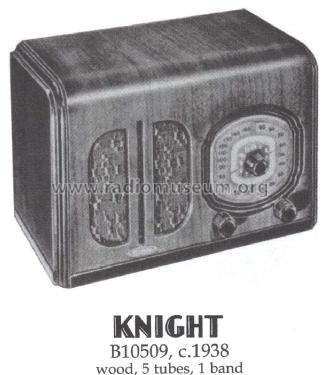

- Table Top Radios Vol. 1 Stein 98 (page 97.)
- Literature/Schematics (1)

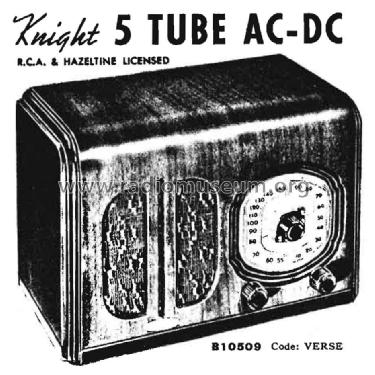

- Allied Radio Catalog (Knight) (Radios Leading Supply Guide 1938 p.5)
