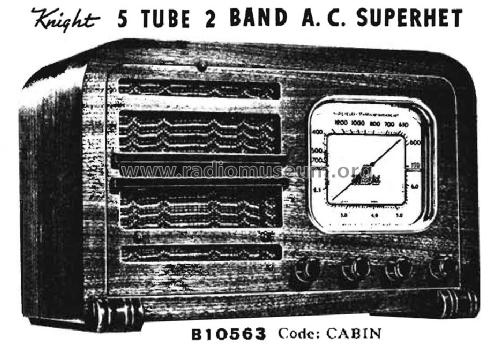

Knight 5 Tube AC Superhet B-10563 Code: Cabin
Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 32176
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Knight 5 Tube AC Superhet B-10563 Code: Cabin - Allied Radio Corp. Knight,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 14.5 x 8.75 x 7 inch / 368 x 222 x 178 mm
- Notes
-
The Knight 5 Tube AC Superhet tunes in 2 bands from 47 to 130 meters and from 174 to 550 meters.
- Net weight (2.2 lb = 1 kg)
- 15 lb (15 lb 0 oz) / 6.810 kg
- Price in first year of sale
- 35.00 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 14 = 1944 = before 1943
- Mentioned in
- Allied Radio Catalog (Knight) (Radios Leading Supply Guide 1938)
