Knight 8 Tube AC Superhet B-10567 Code: Rotor
Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 32179
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Power out
- 7 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Knight 8 Tube AC Superhet B-10567 Code: Rotor - Allied Radio Corp. Knight,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 25.5 x 40.5 x 13 inch / 648 x 1029 x 330 mm
- Notes
-
The 1938 Knight 8 Tube AC Superhet tunes in 3 bands from 16 to 52 meters, from 51 to 175 meters and from 175 to 550 meters.
- Net weight (2.2 lb = 1 kg)
- 65 lb (65 lb 0 oz) / 29.510 kg
- Price in first year of sale
- 99.50 $
- External source of data
- Ernst Erb

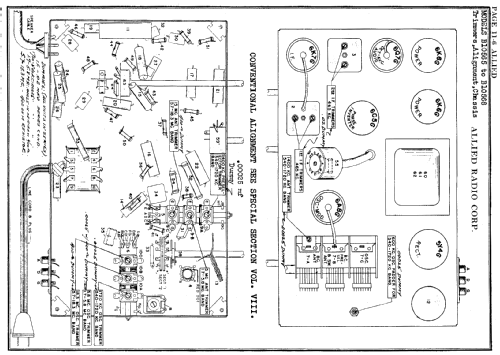

- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Mentioned in
- Allied Radio Catalog (Knight) (Radios Leading Supply Guide 1938 p.13)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 12 = ca. 1941 and before
