• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 32300

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6K7GT 6A8GT 6K7GT 6Q7GT 6K6GT 6X5GT

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

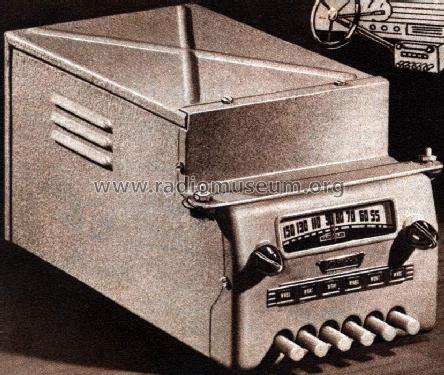

• Model: Knight D-131 Auto Radio - Allied Radio Corp. Knight,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 6.25 x 5.25 x 12 inch / 159 x 133 x 305 mm

• Notes
• Frequency range: 535-1550kHz

• Price in first year of sale
• 19.00 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Literature/Schematics (1)

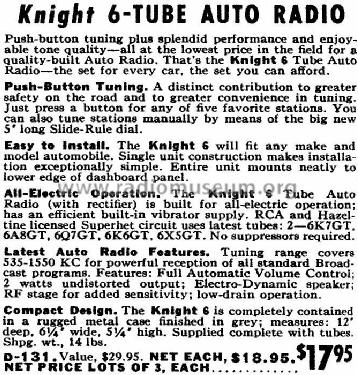

• Allied Radio Catalog (Knight) (1942 p. 30)
