• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 32301

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SQ7 6SK7 6K6G 6N7G

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Power out
• 6 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Knight D-132 Deluxe Auto Radio - Allied Radio Corp. Knight,

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 8.5 x 11 x 7.75 inch / 216 x 279 x 197 mm

• Notes

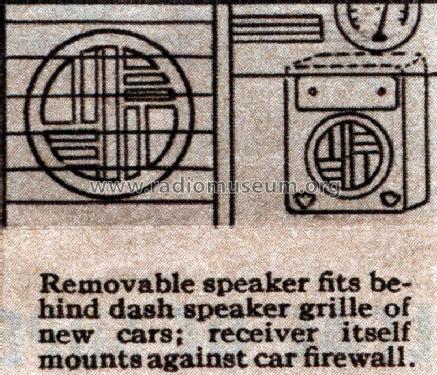

• Vibrator for +B . Speaker can be removed from metal cabinet and mounted externally. Remote control panels D-260 & D-261.

• Price in first year of sale
• 30.00 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Literature/Schematics (1)
• Allied Radio Catalog (Knight) (1942 p. 30)
