• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 32315

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6SK7GT 6SA7GT 6SK7GT 6J5GT 6SQ7GT 6V6GT 80

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-130 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

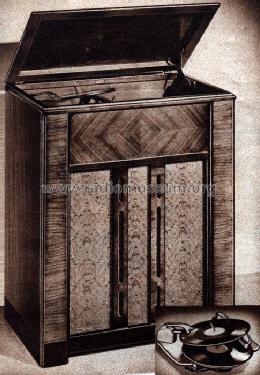

• Model: Knight D-185 Automatic Phono Radio - Allied Radio Corp. Knight,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 26.5 x 32 x 15 inch / 673 x 813 x 381 mm

• Notes
• Built-in loop antenna, record changer. Frequency ranges: 535-1650kHz, 4.8-18.3MHz.

• Price in first year of sale
• 48.00 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Literature/Schematics (1)
• Allied Radio Catalog (Knight) (1942 p. 13)
