• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1936 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108568

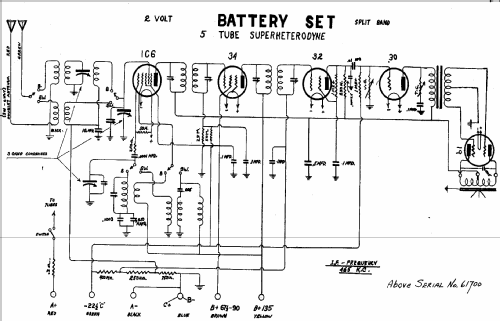

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1C6 34 32 30 19

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Magnetic loudspeaker (reed) generic.

• from Radiomuseum.org
• Model: G-9561 [late] - Allied Radio Corp. Knight,

• Literature/Schematics (1)
• Rider's Perpetual, Volume 6 = 1935 and before

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
