• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 197249

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6BA6 7F8 6BA6 6BE6 6BA6 6BA6 6AU6 6S8GT 6V6GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org
• Model: Knight 10B-249 - Allied Radio Corp. Knight,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 14 x 6.5 x 8 inch / 356 x 165 x 203 mm

• Price in first year of sale
• 78.50 USD

• Mentioned in
• Allied Radio Catalog (Knight) (Cat. 112, 1947, page 8)

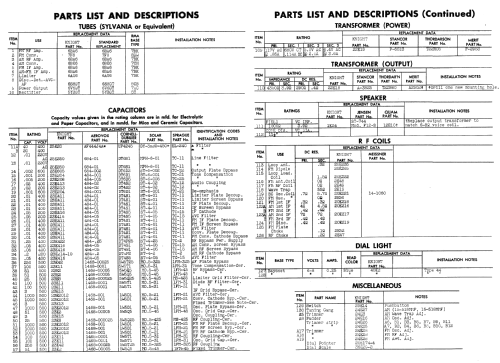

• Literature/Schematics (4)
• Photofact Folder, Howard W. SAMS (Set 42, Date 7/48, Folder 4812-14)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
