- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 354939

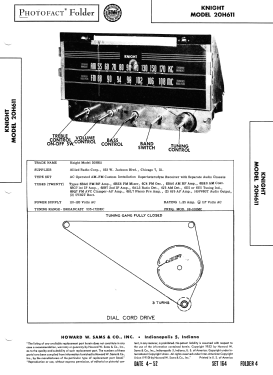

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6BA6 6BE6 6C4 6BA6 6E5 or 6U5 6BE6 6SG7 6SH7 6AL5 6J5 6SQ7 6SL7 6J5 6J5 6V6GT 6V6GT 6V6GT 6V6GT 5Y3GT 5Y3GT
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Knight 20H611 - Allied Radio Corp. Knight,
- Shape
- Chassis only or for «building in»
- Notes
-
Knight model 20H611 is an AC operated AM-FM custom installation superheterodyne receiver with separate audio chassis.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 164, folder 4, dated 4-52)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 1035 models, 638 with images and 680 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
