• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 136099

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1T4 1R5 1T4 1U5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 110 - 120 AC/DC / 90 & 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

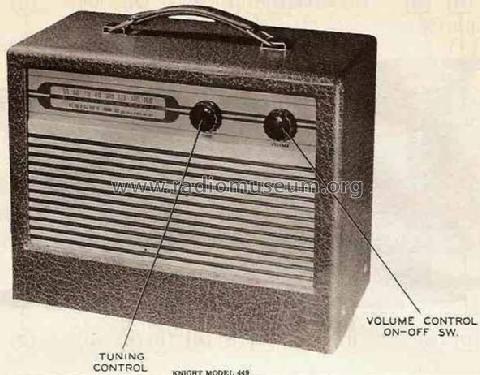

• Model: Knight 449 - Allied Radio Corp. Knight,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Portable receiver with loop antenna.

• Literature/Schematics (1)

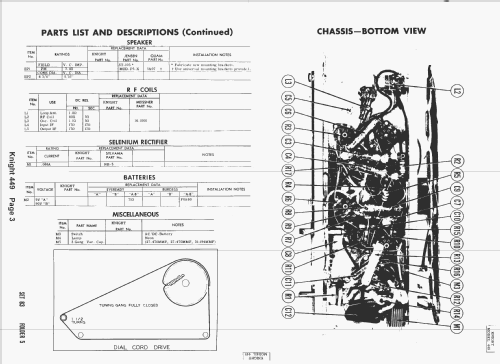

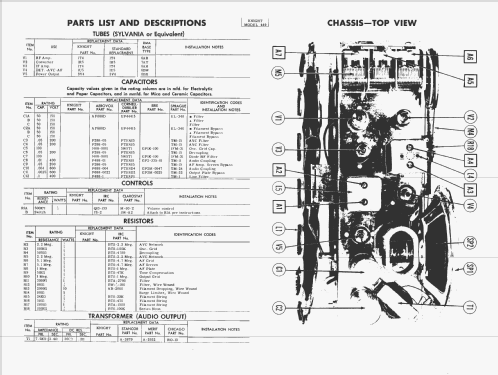

• Photofact Folder, Howard W. SAMS (Set 83 folder 5 date 1-50 title)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
