• Year
  • 1952 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 136109

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / AC/DC 117V =110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org

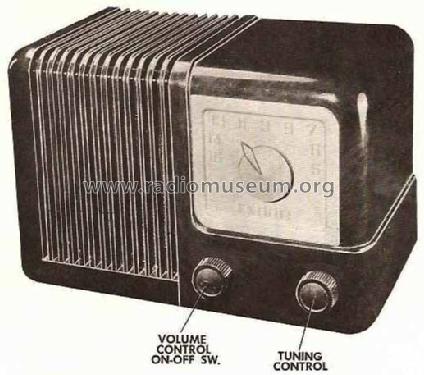

  • Model: Knight 5J705 - Allied Radio Corp. Knight,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes
  • Knight model 5J705 is an AC/DC operated AM superheterodyne receiver.

  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
