• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 136129

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1U4 1R5 1U4 1U5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 115 - 125 AC/DC / 9 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Knight 6K718 - Allied Radio Corp. Knight,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Portable receiver.

• Literature/Schematics (1)

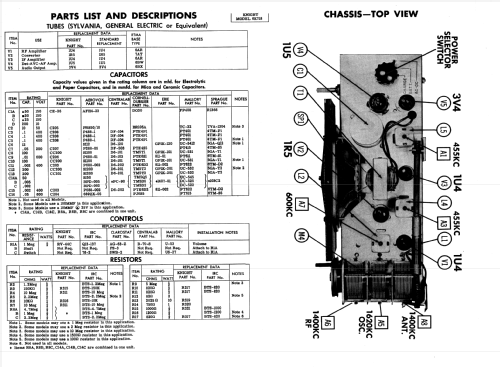

• Photofact Folder, Howard W. SAMS (Set 217 folder 9 date 10-53)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
