• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1957 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 175080

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SC7 6SC7 6SC7 6L6G 6L6G 5U4G

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117; 130 Volt

• Loudspeaker

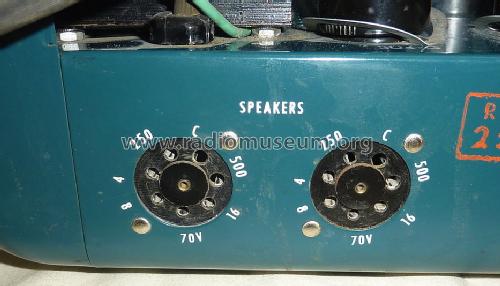

• - This model requires external speaker(s).

• Power out
• 30 W (unknown quality)

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org

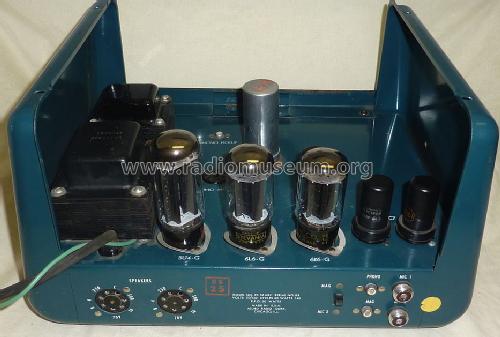

• Model: Knight 93-SZ-682 - Allied Radio Corp. Knight,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 370 x 300 x 230 mm / 14.6 x 11.8 x 9.1 inch

• Notes

• PA amplifier with 3 inputs.

• Net weight (2.2 lb = 1 kg)
• 6.2 kg / 13 lb 10.5 oz (13.656 lb)

• Author
• Model page created by Hannes Gerber. See "Data change" for further contributors.
