• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1955 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 136130

• Number of Tubes
• 6

• Valves / Tubes
• 12AX7 12AX7 12AX7 6L6 6L6 5U4G

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117; 130 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 24 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

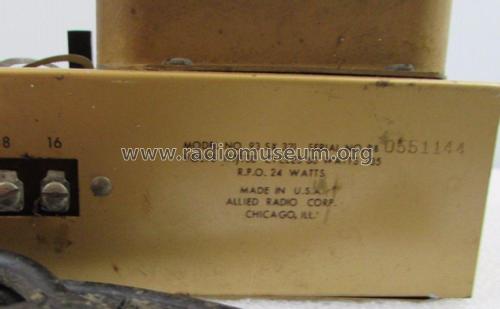

• Model: Golden Knight Hi-Fi Amplifier 93SX321 - Allied Radio Corp. Knight,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 14 x 9 x 8 inch / 356 x 229 x 203 mm

• Notes

• Integrated amplifier, mono. 24 W output power from 20 Hz to 40 kHz. Satin gold finish.

• Net weight (2.2 lb = 1 kg)
• 30 lb 0 oz (30 lb) / 13.620 kg

• Price in first year of sale
• 80.00 $

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Allied Supplement 143, 1955, pg.44)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
