- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1951 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 136102

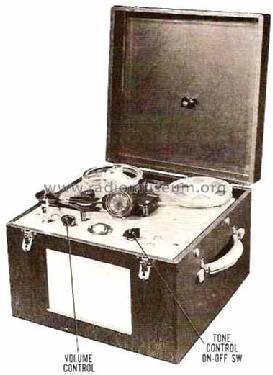

Picture from service manual.
Sams photofact Set 158 folder 6 date 1-52.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Knight 96-499 - Allied Radio Corp. Knight,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
SAMS Photofact, date 1-52, set 158, folder 6, features the Allied radio Knight models 96-144 and 96-499 as the same schematic. The recorders are identical except for the speed.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 158 folder 6 date 1-52)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
