• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 162601

• Number of Tubes
• 6

• Valves / Tubes
• 1N5GT 1A7GT 1N5GT 1H5GT 3Q5GT 35Z5GT

• Main principle
• Superhet with RF-stage; 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / AC/DC 110-125 / 1.4 & ? Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Knight D-145 1.4 Volt-110 Volt AC-DC Super - Allied Radio Corp. Knight,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 19.5 x 10 x 10 inch / 495 x 254 x 254 mm

• Notes
• Frequency range: 540-1650kHz. Was also sold for $25.45 complete with 650-700h "AB" battery pack as Knight D-146.

• Price in first year of sale
• 22.00 $

• Literature/Schematics (1)

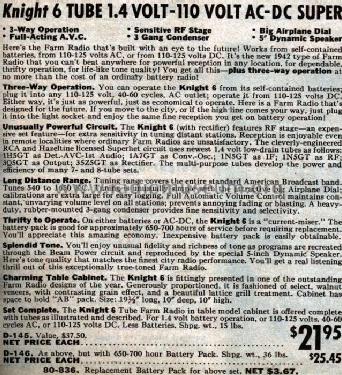

• Allied Radio Catalog (Knight) (1942 p. 29)

• Author
• Model page created by Edmund H. Ramm. See "Data change" for further contributors.
