• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 162241

• Number of Tubes
• 6

• Valves / Tubes
• 6A8GT 6K7GT 6Q7GT 6Q7GT 6K6GT 6X5GT

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Details
• Recording phonogr.-Disc Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Power out
• 3 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

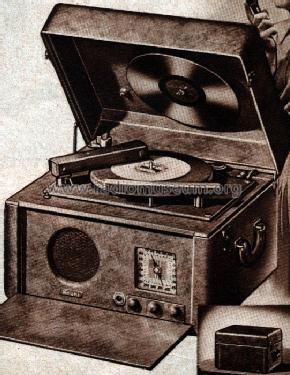

• Model: Knight D-174 Portable Phono-Radio Recorder [AC only] - Allied Radio Corp. Knight,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 17.87 x 11.62 x 15.37 inch / 454 x 295 x 390 mm

• Notes
• Portable case clad in artificial leather. Built-in loop antenna and record player/recorder. Frequency range 535-1720kHz.

• Price in first year of sale
• 47.00 $

• Literature/Schematics (1)
• Allied Radio Catalog (Knight) (1942 p. 25)

• Author
• Model page created by Edmund H. Ramm. See "Data change" for further contributors.
