• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 162049

• Number of Tubes
• 8

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SQ7 6U5 6J5 6V6GT 80

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

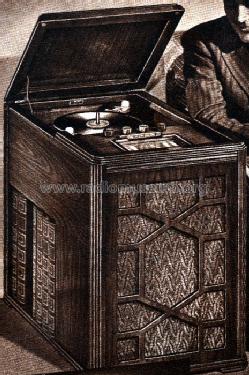

• Model: Knight D-187 Chairside Automatic Phono-Radio - Allied Radio Corp. Knight,

• Shape
• Console: Chairside Radio.

• Dimensions (WHD)
• 17.25 x 25.25 x 29 inch / 438 x 641 x 737 mm

• Notes
• Built-in loop antenna and record changer. Frequency ranges 535-1700kHz, 4.8-18.5MHz.

• Price in first year of sale
• 58.00 $

• Literature/Schematics (1)
• Allied Radio Catalog (Knight) (1942 p. 15)

• Author
• Model page created by Edmund H. Ramm. See "Data change" for further contributors.
