• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1960 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 204474

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• EF86 EF86 ECC83 ECC83 EL37 EL37 EL37 EL37 GZ34 GZ34

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

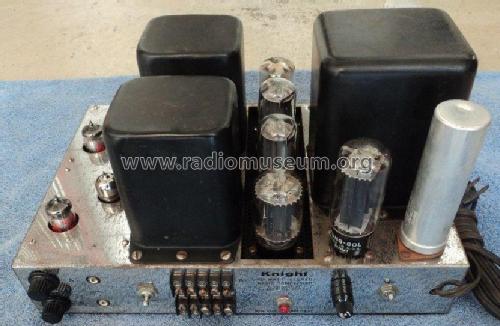

• Model: Knight 60 Watt Stereo Basic Amplifier KB-85 - Allied Radio Corp. Knight,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 14 x 10 x 9 inch / 356 x 254 x 229 mm

• Notes

• Power amplifier, stereo (dual mono).

• Net weight (2.2 lb = 1 kg)
• 39 lb (39 lb 0 oz) / 17.706 kg

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
