• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1963

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 170905

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 7025 12AX7 12AX7 12AX7 12AX7 12AX7 7189 7189 7189 7189 GZ34

• Main principle
• Audio-Amplification; 6 AF stage(s)

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 32 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

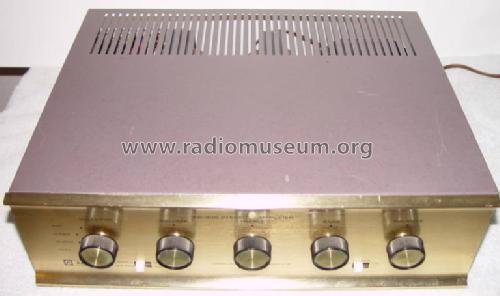

• Model: Knight Stereo Amplifier KG-400 - Allied Radio Corp. Knight,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 14.375 x 4.25 x 11.75 inch / 365 x 108 x 298 mm

• Notes

• Integrated amplifier, stereo,  with Center Channel output.
  Volume control without Loudness compensation.

• Net weight (2.2 lb = 1 kg)
• 24 lb (24 lb 0 oz) / 10.896 kg

• Price in first year of sale
• 59.95 USD

• Mentioned in
• Allied Radio Catalog (Knight) (1963, page 10)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
