• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 154781

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 12AT7 12AT7 6CB6 6CB6 6AU6 6AL5 6BE6 6AS8

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Knight Stereophonic "Bantam" Tuner KN130 92SU421 - Allied Radio Corp. Knight,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 11.375 x 3.375 x 9 inch / 289 x 86 x 229 mm

• Notes
• The Allied Radio Model Knight KN130 is an AC operated 8 Tube FM-AM Tuner.

• Net weight (2.2 lb = 1 kg)
• 13 lb 0 oz (13 lb) / 5.902 kg

• Literature/Schematics (1)

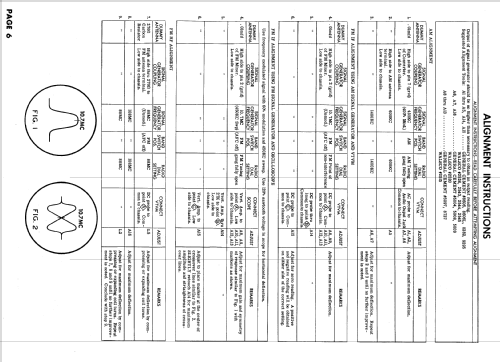

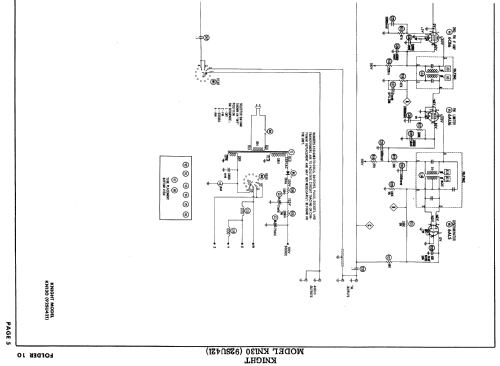

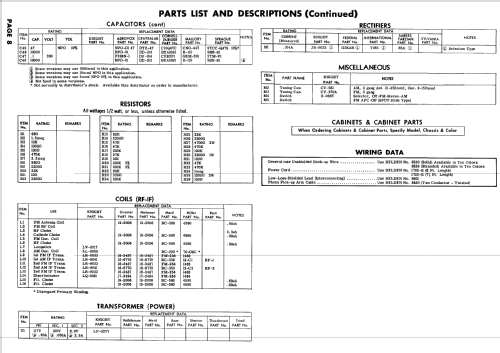

• Photofact Folder, Howard W. SAMS (Date 10-59, Set 461, Folder 10)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
