• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138782

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 6CB6 12AT7 6AB4 6CB6 EM84 6CB6 6AU6 6AU6 6BJ8 12AU7 6BA6 6BE6 6AS8 EM84 EZ80

• Main principle
• Superhet with RF-stage; ZF/IF 10700/455 kHz; 1 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Knight KN-120 Ch= 92SU423 - Allied Radio Corp. Knight,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 15.75 x 4.375 x 13.125 inch / 400 x 111 x 333 mm

• Notes

• Tuner with independent AM and FM sections for (now obsolete) "Simulcast" AM-FM-Stereo;
  FM Multiplex output.

  Wechselstromausführung für 50-60Hz
  Leistungsaufnahme 59W (0,57A bei 117V)
  Empfangsbereiche: 88-108MHz und 535-1640kHz

• Net weight (2.2 lb = 1 kg)
• 21 lb (21 lb 0 oz) / 9.534 kg

• Literature/Schematics (1)

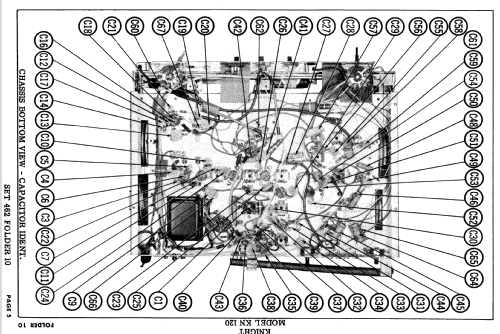

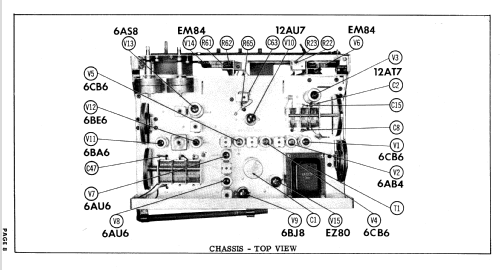

• Photofact Folder, Howard W. SAMS (Date 11-59, Set 462, Folder 10)

• Author
• Model page created by Knut Rothstein. See "Data change" for further contributors.
