• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1958 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 170629

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AX7 6L6GB 5Y3GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Knight KN-3008 Ch= 93X504 - Allied Radio Corp. Knight,

• Shape
• Tablemodel, with any shape - general.

• Notes

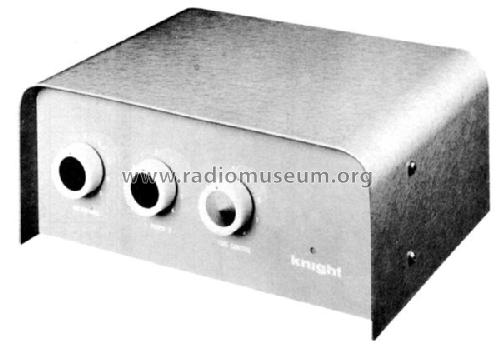

• The Allied Radio Model Knight KN-3008 is an AC operated 3 Tube 3 Channel 8 Watt Audio Amplifier.

• Literature/Schematics (1)

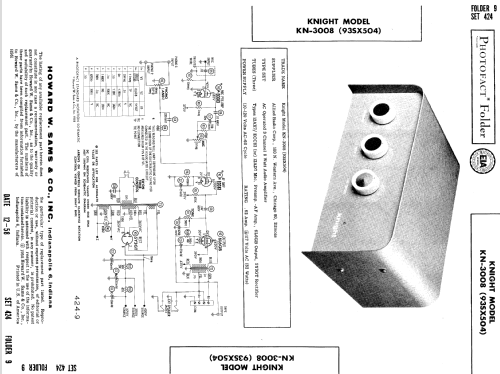

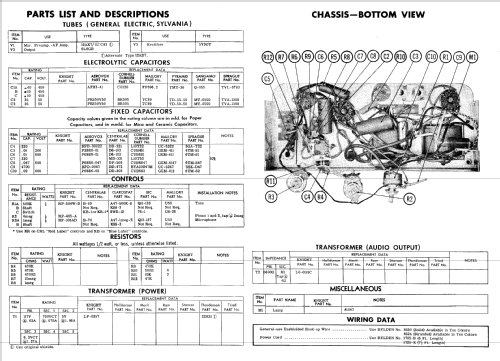

• Photofact Folder, Howard W. SAMS (Date 12-58, Set 424, Folder 9)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
