• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1958

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 175287

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12AX7 12AX7 12AX7 12AU7A 6AC7 6AC7 5U4GB

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105 -130 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Knight KN-3035 Ch= 93SX055 - Allied Radio Corp. Knight,

• Shape
• Tablemodel, low profile (big size).

• Notes
• The Allied Radio Model Knight KN-3035 is an AC operated 7 Tube 5 Channel 35 Watt Audio Amplifier.

• Literature/Schematics (1)

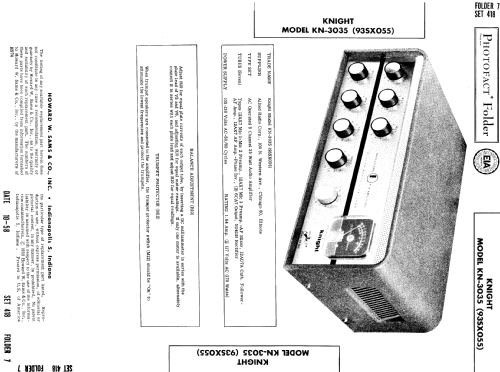

• Photofact Folder, Howard W. SAMS (Date 10-58, Set 418, Folder 7)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
