• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 177125

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 6AB4 12AT7 6BE6 6BA6 6AU6 6AU6 12AX7 6AV6 12AX7 6BQ5 6BQ5 6X4 6V4

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Knight KN-315 Ch= 92SZ410 - Allied Radio Corp. Knight,

• Shape
• Chassis only or for «building in»

• Notes
• The Allied Radio Model Knight KN-315 is an AC operated AM-FM receiver with audio amplifier.

• Literature/Schematics (1)

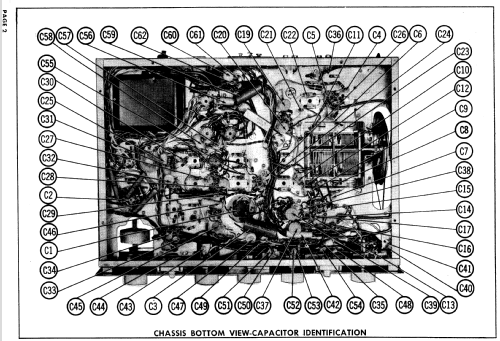

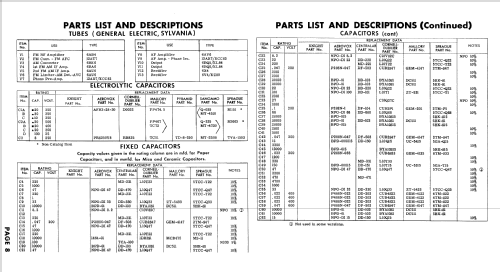

• Photofact Folder, Howard W. SAMS (Date 9-58, Set 412, Folder 10)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
