Knight 25 Watt Amplifier S-755, YZ-755
Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1956 ??
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 223401
1957 Allied catalog, page 204

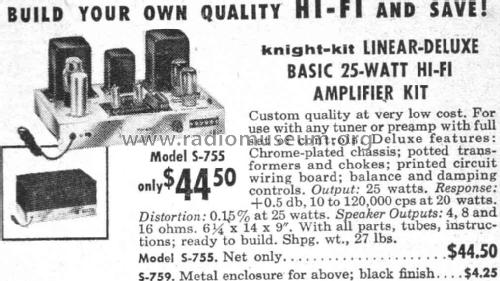

Popular Electronics February 1957 page 9
Popular Electronics February 1957 page 9
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 25 W (45 W max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: Knight 25 Watt Amplifier S-755, YZ-755 - Allied Radio Corp. Knight,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 14 x 6.25 x 9 inch / 356 x 159 x 229 mm
- Notes
-
Power Amplifier, mono, with Damping Control.
Difference between S-755 and YZ-755 (if any) is unknown. Both are kits with the same price in 1957.
- Mentioned in
- Allied Radio Catalog (Knight) (1957, page 204, for YZ-755)
- Literature/Schematics (1)
- -- Original prospect or advert (Popular Electronics, Feb. 1957 for S-755)
- Literature/Schematics (2)
- -- Original prospect or advert (Popular Electronics, Sept. 1956, page 9 for S-755)
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
