• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1965

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 266987

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12AX7A 12AX7A 6AV6 6L6GC 6L6GC 5AS4

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50-60 cycles, 105-130 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 35 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Knight Public Address System KN 3235C - Allied Radio Corp. Knight,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 15.25 x 5 x 10.25 inch / 387 x 127 x 260 mm

• Notes

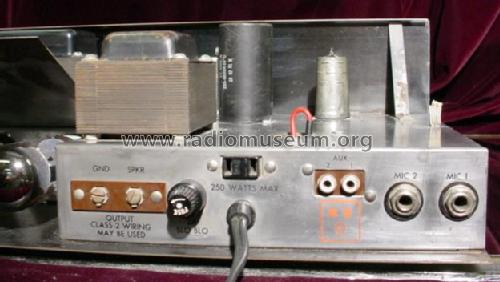

• Allied Knight PA Amplifier KN 3235C. PA amplifier with Anti-Feedback switch; inputs: 2 x Mic and 2 x Aux.

• Net weight (2.2 lb = 1 kg)
• 28 lb 0 oz (28 lb) / 12.712 kg

• Price in first year of sale
• 54.95 USD

• Mentioned in
• Allied Radio Catalog (Knight) (1965 Catalog No. 650 Page 510)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
