• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1948

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 354690

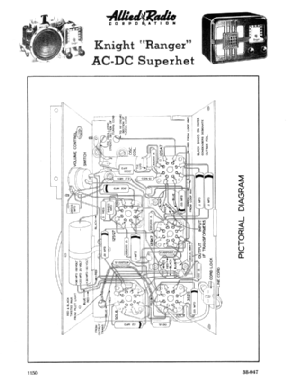

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7GT 12SK7GT 12SQ7GT 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Knight "Ranger" 83-275 - Allied Radio Corp. Knight,

• Shape
• Tablemodel, with any shape - general.

• Notes

• Kit price stated was for the complete parts, tubes, and cabinet, less only wire and solder. Cabinet was walnut bakelite.

• Price in first year of sale
• 15.50 USD

• Literature/Schematics (1)
• -- Schematic

• Literature/Schematics (2)
• Allied Radio Catalog (Knight) (1948, No. 115, page 124.)

• Author
• Model page created by Chuck Gloman. See "Data change" for further contributors.
