• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 215796

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 75 42 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

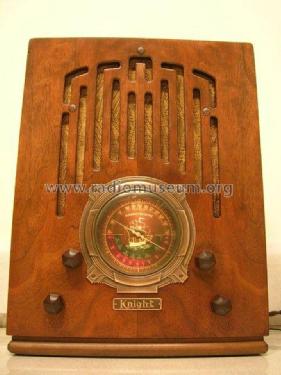

• Model: Knight 9701H - Allied Radio Corp. Knight,

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 280 x 370 x 205 mm / 11 x 14.6 x 8.1 inch

• Notes

• Stein "Cathedral & Tombstone Radios" lists 6 tubes for this model.

• Mentioned in
• Machine Age to Jet Age II (page 166.)

• Literature/Schematics (1)
• Cathedral & Tombstone Radios (page 150.)

• Author
• Model page created by José Maria Santos-Sanchez. See "Data change" for further contributors.
