Albametro 2159
Allocchio Bacchini (Radialba); Milano
- Country
- Italy
- Manufacturer / Brand
- Allocchio Bacchini (Radialba); Milano
- Year
- 1946
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 230454
Ebay auction by user ctturi 121386117663

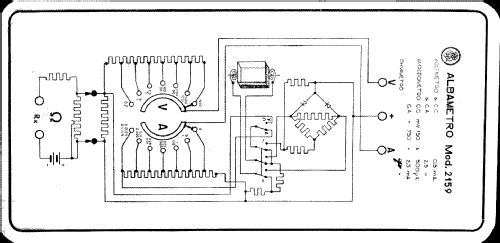

Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Loudspeaker
- - - No sound reproduction output.
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Albametro 2159 - Allocchio Bacchini Radialba;
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 100 x 60 x 185 mm / 3.9 x 2.4 x 7.3 inch
- Notes
-
Voltmetro CA e CC - Amperometro CA e CC - Ohmetro. Portatile ma massiccio.
Questo tester fu presentato alla fiera di Milano nel 1946, fu chiamato ALBAMETRO da ALlocchio BAcchini METRO.
- Net weight (2.2 lb = 1 kg)
- 1 kg / 2 lb 3.2 oz (2.203 lb)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
