Oscillatore Modulato 1637
Allocchio Bacchini (Radialba); Milano
- Country
- Italy
- Manufacturer / Brand
- Allocchio Bacchini (Radialba); Milano
- Year
- 1945 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 320596

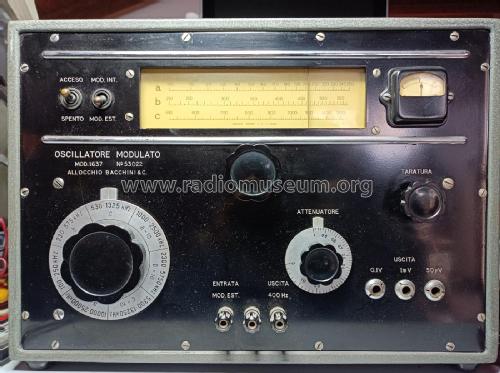

Picture are mine just as is the instrument.

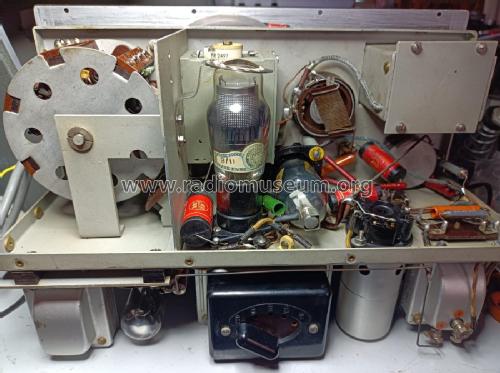

Image mine just as the instrument
Imange mine just as the instrument
Imange mine just as the instrument
Imange mine just as the instrument
- Number of Tubes
- 0
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oscillatore Modulato 1637 - Allocchio Bacchini Radialba;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Generatore di segnali. Campo di frequenza da 100 kHz a 25 MHz diviso in 7 gamme.
Impedenza di uscita: 10 Ω per tensioni di uscita fino a 1 mV. Variabile da 50 Ω a 0 per tensioni di uscita superiori.
- Mentioned in
- -- Original prospect or advert (Notiziario di Radio Industria aprile 1946)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
