- Country
- Italy
- Manufacturer / Brand
- Allocchio Bacchini (Radialba); Milano
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 249042
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details

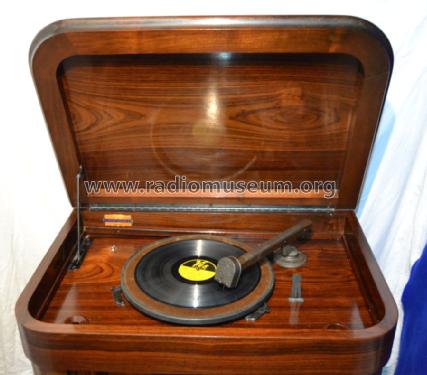

- Record Player (not changer); Visual Tuning Indicator pre Eye
- Power type and voltage
- Alternating Current supply (AC) / 105; 125; 160; 220 Volt
- Loudspeaker

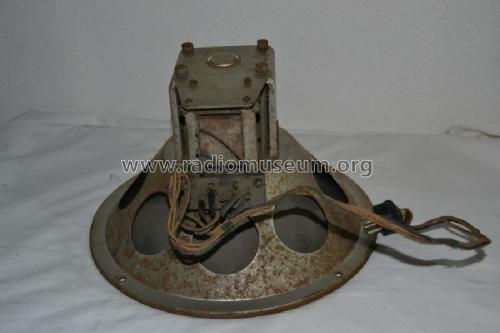

- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 29 cm = 11.4 inch
- Power out
- 8 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 75CML - Allocchio Bacchini Radialba;
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 680 x 830 x 450 mm / 26.8 x 32.7 x 17.7 inch
- Notes
-
Esiste una variante di mobile, pubblicizzata come 75G.
- Author
- Model page created by Fabrizio Palombi. See "Data change" for further contributors.
