• Country
• Germany

• Manufacturer / Brand
• Alotti-Funk; (wo?)

• Year
• 1929/1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 13908

• Number of Tubes
• 3

• Valves / Tubes
• REN1104 RE134 RE154

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Netzanschlußempfänger und Sprechmaschine - Alotti-Funk; wo?

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 450 x 450 x 420 mm / 17.7 x 17.7 x 16.5 inch

• Notes

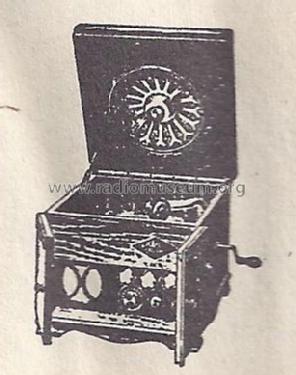

• Radio in kubischem Gehäuse mit aufklappbarem Deckel, darunter das Kurbel-Grammophon. Grawor-Lautsprecher.

• Price in first year of sale
• 267.00 RM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Arlt's grosser Radiokatalog 1930 (p.35)
