• Country
• Italy

• Manufacturer / Brand
• Altar Radio; Livorno

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 327824

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EF41 EBC41 EL84 EM80 AZ41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 25 cm = 9.8 inch

• Material
• Wooden case

• from Radiomuseum.org

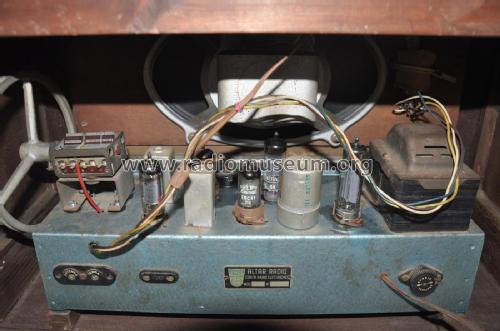

• Model: MR25 - Altar Radio; Livorno

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 330 x 260 mm / 19.7 x 13 x 10.2 inch

• Author
• Model page created by Sergio Maggiani. See "Data change" for further contributors.

• Other Models

• Here you find 31 models, 17 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
