• Country
• United States of America (USA)

• Manufacturer / Brand
• Altec Lansing Corp.; Oklahoma City (OK)

• Year
• 1950

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 126979

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6J7 6J5 6L6G 6L6G 5U4G

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: A-323C - Altec Lansing Corp.; Oklahoma

• Shape
• Chassis only or for «building in»

• Notes
• The Ausio Amplifier and Power Supply for the Altec ALC-101 AM-FM tuner is this model A-323C. See also ALC-101B and A-323B.

• Literature/Schematics (1)

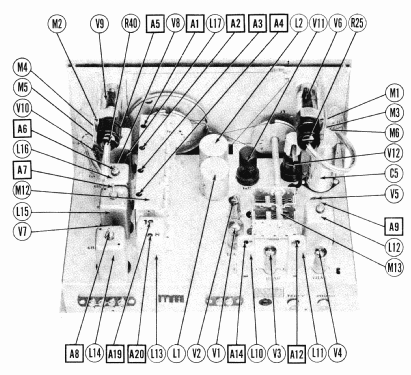

• Photofact Folder, Howard W. SAMS (Date 1-50 set 84 folder 2 - together with ALC-101)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
