• Country
• United States of America (USA)

• Manufacturer / Brand
• Altec Lansing Corp.; Oklahoma City (OK)

• Year
• 1949

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 96496

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6J7 6J7 6J7 6J5 6L6G 6L6G 5U4G

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50-60 cycles, 110-125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 18 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

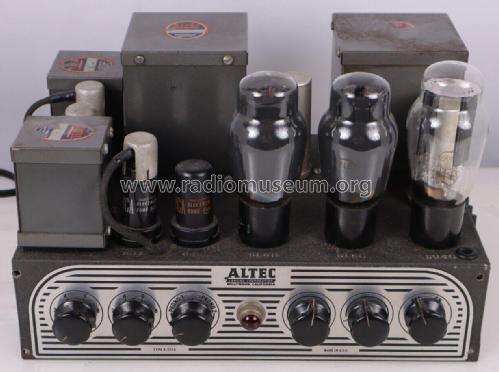

• Model: Amplifier A-324A - Altec Lansing Corp.; Oklahoma

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 12 x 9 x 9 inch / 305 x 229 x 229 mm

• Notes

• Altec Lansing A-324A is a PA amplifier with 4 inputs: 2x Mic + 2x Phono.

• Net weight (2.2 lb = 1 kg)
• 14 lb (14 lb 0 oz) / 6.356 kg

• Price in first year of sale
• 240.00 USD

• Literature/Schematics (1)
• 1951 Newark catalog Nº 51

• Literature/Schematics (2)
• Radio Master's Catalog, 15th ed., 1950-51, pg. B-2.

• Literature/Schematics (3)

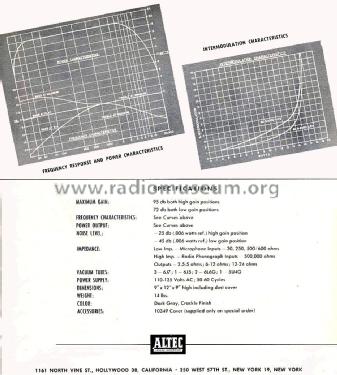

• -- Original prospect or advert (Altec Lansing, Katalog 1949)

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
