- Country
- United States of America (USA)
- Manufacturer / Brand
- Altec Lansing Corp.; Oklahoma City (OK)
- Year
- 1950
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 127011
SAMS

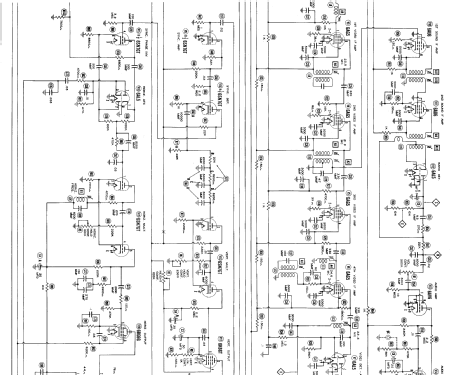

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 25
- Valves / Tubes
- 6AG5 6J6 6AG5 6AG5 6AG5 6AG5 6AL5 6AC7 6SN7GT 6AU6 6AU6 6AL5 6AV6 6V6GT 6SN7GT 6SN7GT 6K8GT 6AL5 6SN7GT 6BG6G 6W4GT 1B3GT 1B3GT 5U4G 16JP4
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Material
- Wooden case
- from Radiomuseum.org
- Model: ALC-205 - Altec Lansing Corp.; Oklahoma
- Shape
- Tablemodel, low profile (big size).
- Notes
- The tuning range for Altec Lansing ALC-205 and ALC-206 is channels 2 thru 13. The Altec Lansing ALC205 is a table model and the ALC206 is a console with the same chassis as this ALC-205.
- Literature/Schematics (1)

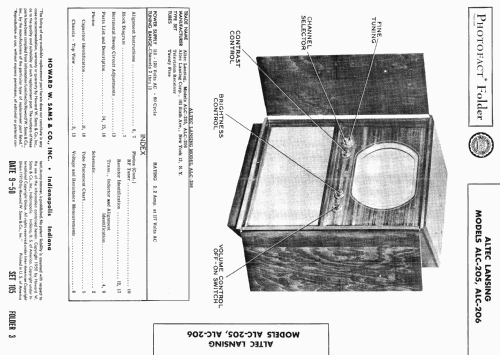

- Photofact Folder, Howard W. SAMS (Date 9-50, set 105, folder 3)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
