- Country
- United States of America (USA)
- Manufacturer / Brand
- Altec Lansing Corp.; Oklahoma City (OK)
- Year
- 1955 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 280134
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 105; 117; 125 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 260 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org

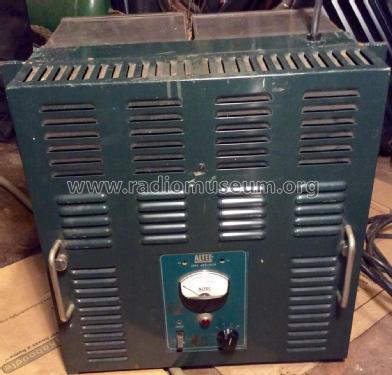

- Model: 260A - Altec Lansing Corp.; Oklahoma
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 19 x 17.5 x 14.25 inch / 483 x 445 x 362 mm
- Notes
-
Medium gain power amplifier with bias meter; output load 9Ω, 19Ω (70V line) and 65Ω (130V line).
- Net weight (2.2 lb = 1 kg)
- 186 lb (186 lb 0 oz) / 84.444 kg
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
