2Way Speaker System Seventeen
Altec Lansing Corp.; Oklahoma City (OK)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Altec Lansing Corp.; Oklahoma City (OK)
- Year
- 1970 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 260151
Sales Brochure
Sales Brochure
Sales Brochure
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 2 Loudspeakers
- Power out
- 65 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2Way Speaker System Seventeen - Altec Lansing Corp.; Oklahoma
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 660 x 1016 x 457 mm / 26 x 40 x 18 inch
- Notes
-

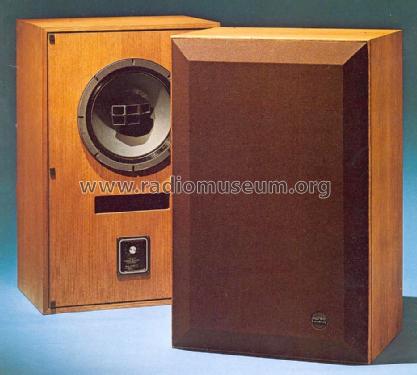

Altec Lansing 2-Way Speaker System Model Seventeen.
15" Bass Driver with coaxially mounted sectoral horn and compression driver
Impedance 8 Ohms, 30 - 20000Hz, 100dB SPL
Max. Power 65 Watts
Recommended for use with amplifiers between 10 and 350 Watts
118 dB SPL at 65 Watts
Crossover: 1500Hz
Finish: Hand-Rubbed Oiled Oak
Grille: Acoustically transparent brown knit fabric mounted on removable frame.
- Net weight (2.2 lb = 1 kg)
- 62.6 kg / 137 lb 14.2 oz (137.885 lb)
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
