- Country
- United States of America (USA)
- Manufacturer / Brand
- Altec Lansing Corp.; Oklahoma City (OK)
- Year
- 1969 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 350763
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 50 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org

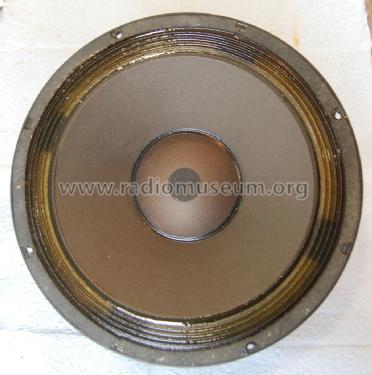

- Model: 414-16B - Altec Lansing Corp.; Oklahoma
- Shape
- Chassis only or for «building in»
- Notes
-
- low frequency woofer with 1.8 lb, AlNiCo magnet
- frequency response: 30 Hz to 4000 Hz
- 3" edge wound copper ribbon voice coil
- cast aluminum frame
- rated 50 watts
- high efficiency: 99 dB at 4' from 1 watt
- Net weight (2.2 lb = 1 kg)
- 15 lb (15 lb 0 oz) / 6.810 kg
- Author
- Model page created by George Papaiz. See "Data change" for further contributors.
