• Country
• United States of America (USA)

• Manufacturer / Brand
• Altec Lansing Corp.; Oklahoma City (OK)

• Year
• 1975 ?

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 206247

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

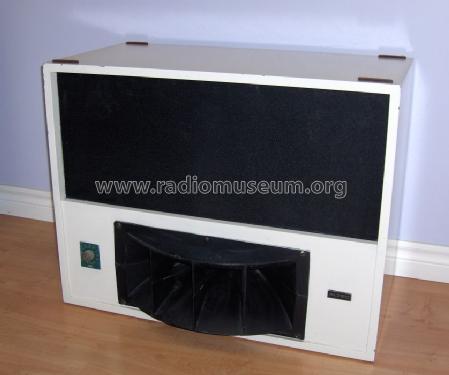

• Model: 9844A - Altec Lansing Corp.; Oklahoma

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 31 x 24 x 16 inch / 787 x 610 x 406 mm

• Notes
• This high efficiency two-way bass-reflex studio monitor system comprises two 12" low frequency Model 414-16B drivers, one high frequency Model 806A compression driver with Model 811B sectoral horn and a Model N-800F crossover network with adjustable high frequency attenuator.
  Frequency response is 30 to 22000 Hz. 8 ohms, 30 watts.
  Pressure sensitivity is 99 dB at 4 feet from 1 watt for the low frequency drivers
  and 109.5 dB at 4 feet from 1 watt for the high frequency driver.

• Net weight (2.2 lb = 1 kg)
• 90 lb (90 lb 0 oz) / 40.860 kg

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by George Papaiz. See "Data change" for further contributors.
