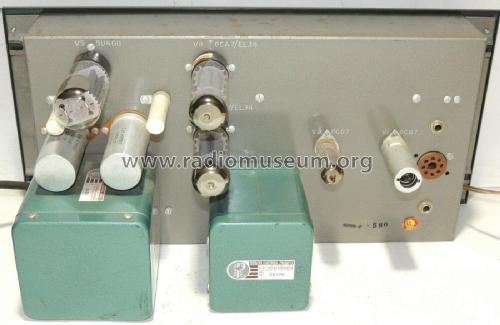

Amplifier 128A
Altec Lansing Corp.; Oklahoma City (OK)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Altec Lansing Corp.; Oklahoma City (OK)
- Year
- 1957 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 342129
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 117; 125 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 30 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Amplifier 128A - Altec Lansing Corp.; Oklahoma
- Shape
- Rack
- Dimensions (WHD)
- 19 x 8.75 x 8 inch / 483 x 222 x 203 mm
- Notes
-
Commercial power amplifier, with tube monitoring meter.
Power Output:
- 15 W at less than 1/2% THD, 30-20,000 Hz.
- 30 W at less than 2% THD, 30-20,000 Hz.
- Net weight (2.2 lb = 1 kg)
- 18 lb (18 lb 0 oz) / 8.172 kg
- Literature/Schematics (1)
- Altec Catalog Sheets, 1957, data sheet AL1423-1, 128A Amplifier
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
