• Country
• United States of America (USA)

• Manufacturer / Brand
• Altec Lansing Corp.; Oklahoma City (OK)

• Year
• 1957 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 177421

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6CG7 6CG7 EL34 EL34 5U4GB

• Number of Transistors

• Semiconductors
• 1N1491

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (50 W max.)

• Material
• Metal case

• from Radiomuseum.org

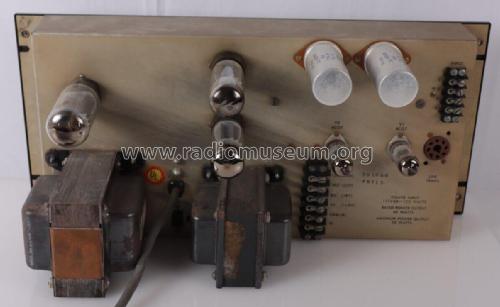

• Model: Amplifier 1568A - Altec Lansing Corp.; Oklahoma

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 19 x 9 x 8 inch / 483 x 229 x 203 mm

• Notes
• Professional Power Amplifier, mono, for 19" rack.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
