• Country
• United States of America (USA)

• Manufacturer / Brand
• Altec Lansing Corp.; Oklahoma City (OK)

• Year
• 1950 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 214258

• Number of Tubes
• 9

• Valves / Tubes
• 6SJ7 6SJ7 6SJ7 6SJ7 6J5 6J5 6L6G 6L6G 5U4G

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50-60 cycles, 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 18 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

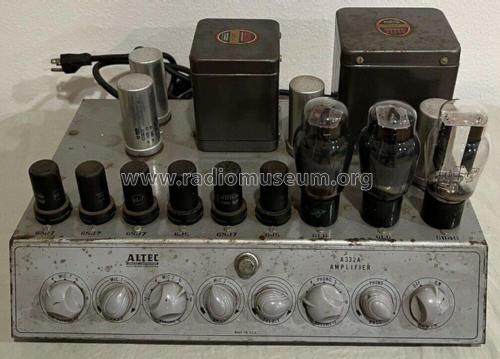

• Model: Amplifier A332A - Altec Lansing Corp.; Oklahoma

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 17 x 9 x 11 inch / 432 x 229 x 279 mm

• Notes
• Altec Amplifier A332A;
  Mic. 1,2 & phono-in.

• Net weight (2.2 lb = 1 kg)
• 35 lb (35 lb 0 oz) / 15.890 kg

• Price in first year of sale
• 364.00 USD

• Mentioned in
• -- Schematic

• Literature/Schematics (1)
• Radio Master's Catalog, 15th ed., 1950-51, pg. B-2.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
