Compressor Amplifier 439A
Altec Lansing Corp.; Oklahoma City (OK)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Altec Lansing Corp.; Oklahoma City (OK)
- Year
- 1957
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 356386

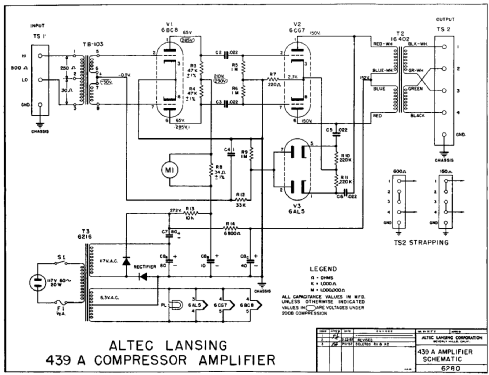

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Compressor Amplifier 439A - Altec Lansing Corp.; Oklahoma
- Shape
- Rack
- Dimensions (WHD)
- 19 x 3 x 6 inch / 483 x 76 x 152 mm
- Notes
-
Rectifier 2x 58-D Sarkes-Tarzian selenium rectifiers
Color: Metallic Grey
- Net weight (2.2 lb = 1 kg)
- 8.5 lb (8 lb 8 oz) / 3.859 kg
- Mentioned in
- - - Manufacturers Literature (Altec Lansing, Compressor Amplifier 439A, Operating Instructions, Servicing, AL-1401-1, 12647, schem)
- Literature/Schematics (1)
- - - Manufacturers Literature (Altec Lansing, Compressor Amplifier 436A, Operating Instructions, Servicing, AL-1401-4, 1956)
- Literature/Schematics (2)
- - - Manufacturers Literature (Altec Lansing catalog, 1957, pages 65-66)
- Author
- Model page created by Wolfgang Müllner. See "Data change" for further contributors.
