Stereo Power Amplifier 9440A

Altec Lansing Corp.; Oklahoma City (OK)

Data
Forum
Pictures
Collections

  • Year
  • 1975
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 259946

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 800 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Power Amplifier 9440A - Altec Lansing Corp.; Oklahoma
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 19 x 7 x 11 inch / 483 x 178 x 279 mm
  • Notes

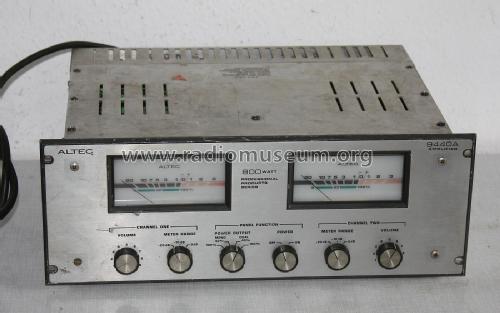

  • Altec Lansing Stereo Power Amplifier Model 9440A.
    400 Watts per Channel into 4Ω, 0.1% THD
    200 Watts per Channel into 8Ω, 0.1% THD
    800 Watts mono bridged mode into 8Ω
    Frequency Response: 20-20000Hz , +- 0,25dB

    Illuminated VU Meters
    Finish: Front Gun Metal Grey,Chassis Clear irridited steel
    Power Consumption 1000 Watts max.


  • Net weight (2.2 lb = 1 kg)
  • 56.5 lb (56 lb 8 oz) / 25.651 kg
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
