• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1958–1963

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 273365

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AV6 12AQ5 12X4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

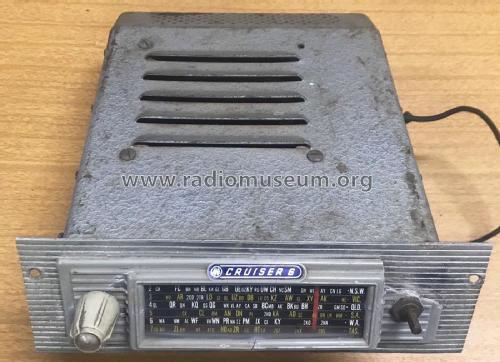

• Model: Cruiser 6 931A - Amalgamated Wireless

• Shape
• Chassis only or for «building in»

• Notes

• Provision for an external speaker.

• Price in first year of sale
• 40.95 AUS £

• Literature/Schematics (1)
• - - Manufacturers Literature (AWA Technical Information & Service Data.)

• Literature/Schematics (2)
• J.R. Publications Car Radio Service Handbook (Vol. 1, Page A62.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
